Waveshare SIM8202G-M2 5G Snapdragon X55 Multi Mode Multi Band 5G/4G/3G Module Expand Board for Jetson Nano, EU Plug

This 5G/4G/3G Jetson Nano communication module adopts SIMCom 5G module SIM8202G-M2, supports 5G NSA and SA networking, providing data rate up to 2.4 Gbps (DL) / 500 Mbps (UL).
The base board features standard M2 connector, allows connecting with different 4G or 5G communication module in M2 package. There are also onboard interfaces like USB3.1 port, audio jack, SIM card slot, etc. Combined with our configuration script and development resources, it is easy to enable 5G high speed communication for the Jetson Nano or computer. This 5G module is ideal for fast evaluating 5G modules, as well as being integrated into sorts of applications where 5G connection is required.
Standard 40PIN GPIO extension header, supports direct attaching to Jetson Nano
Come with SIM8202G-M2 core module, based on Qualcomm snapdragon X55 platform, with multi mode multi band support 5G/4G/3G communication, supports functions like phone call, SMS, cloud communication, etc.
USB 3.1 port for testing AT commands, sending messages, cloud communication, making phone call, getting GNSS positioning data, etc.
SIM card slot, supports 1.8V / 3V SIM card
2x LED indicators, easy to monitor the working status
AT command support, based on 3GPP TS 27.007, 27.005 and V.25TER command set

£235.24 £284.65

Waveshare SIM8202G-M2 5G Snapdragon X55 Multi Mode Multi Band 5G/4G/3G Module Expand Board for Jetson Nano, US Plug

This 5G/4G/3G Jetson Nano communication module adopts SIMCom 5G module SIM8202G-M2, supports 5G NSA and SA networking, providing data rate up to 2.4 Gbps (DL) / 500 Mbps (UL).
The base board features standard M2 connector, allows connecting with different 4G or 5G communication module in M2 package. There are also onboard interfaces like USB3.1 port, audio jack, SIM card slot, etc. Combined with our configuration script and development resources, it is easy to enable 5G high speed communication for the Jetson Nano or computer. This 5G module is ideal for fast evaluating 5G modules, as well as being integrated into sorts of applications where 5G connection is required.
Standard 40PIN GPIO extension header, supports direct attaching to Jetson Nano
Come with SIM8202G-M2 core module, based on Qualcomm snapdragon X55 platform, with multi mode multi band support 5G/4G/3G communication, supports functions like phone call, SMS, cloud communication, etc.
USB 3.1 port for testing AT commands, sending messages, cloud communication, making phone call, getting GNSS positioning data, etc.
SIM card slot, supports 1.8V / 3V SIM card
2x LED indicators, easy to monitor the working status
AT command support, based on 3GPP TS 27.007, 27.005 and V.25TER command set

£235.24 £272.88

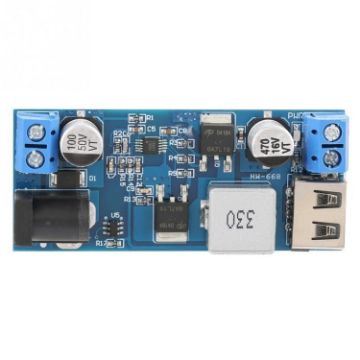

HW-688 DC 5V6A Buck Module 12V24V To 5V Power Supply USB Charging 5A High Power 30W

USB mobile phone smart charging, RZC7512 charging control IC can identify the charging protocol and automatically switch the charging mode
Support the power supply range of 9-36v, covering common 12v and 24v power supplies. Simply connect the module with a wire, and you can output a constant voltage of 5v as a 5v power supply. When using 220v AC, you can use a 12/24v transformer to convert the output first in the connection module
Socket modification can install a small transformer inside the socket, and then connect the output wire to the module. If there is enough space inside the socket, you can open the socket to expose the output port of the module to the socket for easy use.
The plug strip with USB socket also needs to be modified. The module comes with a charging identification chip, which can automatically switch the charging mode, and the charging efficiency is higher and safer.
Output voltage: 5v
Working voltage: 4.5-5.5v
Input voltage: 9-36v
Application scope: USB charging for electric car/motorcycle modification, car power modification, solar battery, portable USB charging, generator USB output, DIY application

£4.55 £5.56

Waveshare IMX219-77 8MP 77 Degree FOV Camera, Applicable for Jetson Nano

Support NVIDIA Jetson Nano Developer Kit
8 Megapixels
Sensor: IMX219
Lens specifications:
CMOS size: 1/4inch
Aperture (F): 2.0
Focal Length: 2.96mm
Angle of View (diagonal): 77 degree

£14.62 £18.28

Atmel-ICE-C Kit Original PCBA Inside Full Functionality Cost Effective Development Tool for Atmel SAM/AVR Microcontrollers

Overview
Atmel-ICE-C is the cost effective solution for the powerful Atmel-ICE, it adopts the original ATMEL-ICE-PCBA and comes with a durable aluminium alloy enclosure.
Atmel-ICE-C delivers the same functionality and usability just as the ATMEL-ICE Full Kit, it is capable of debugging and programming Atmel ARM Cortex -M based Atmel SAM and AVR microcontrollers with on-chip debug capability.
Key Features
Support JTAG, SWD, PDI, TPI, aWire, SPI and debugWIRE interfaces
Full source-level debugging in Atmel Studio
Support all built-in hardware breakpoints in the target microcontroller (number depends on the OCD module in the target)
Up to 128 software breakpoints

£128.72 £148.03

Waveshare 15.6 inch 1920x1080 IPS HDMI LCD (H) Capacitive Touch Screen with Case

15.6 inch IPS screen,1920x1080 hardware resolution
Toughened glass capacitive touch panel, 6H hardness
Supports popular mini PCs such as Raspberry Pi, Jetson Nano, BB Black, as well as general desktop computers
When works with Raspberry Pi, supports Raspbian/Ubuntu/Kali/Retropie/WIN10 IOT, driver free
When work as a computer monitor, supports Windows 10/8.1/8/7, ten-points touch, and driver free
Support popular game consoles like Microsoft XBOX360, Sony PS4, and Nintendo Switch
Multi languages OSD menu, for power management, brightness/contrast adjustment, etc.
3.5mm audio jack, supports HDMI audio output

£134.11 £166.30

Waveshare 15.6 inch 1920x1080 Full HD Universal Portable IPS Touch Monitor, HD Port/Type-C

Overview
This is a universal portable touch monitor, which features Type-C and HDMI connectivity, 1920x1080 pixels, toughened glass capacitive touch panel, and powerful 10000mAh battery.
It is a good companion for Raspberry Pi, besides, other popular mini PC are also supported, such as Jetson Nano. In the case of working as a simple monitor with host devices like desktop computer, notebook, cell phone, or game console, it is also a "serious" option. Switch to the HD big screen in one second through the Type-C or HDMI connection, then start to study/work effectively, or enjoy yourself with your favorite drama/game.
Display: 15.6 inch, 1920x1080 pixels, IPS screen (up to 178 viewing angle)
Touch panel: capacitive, toughened glass panel, 6H hardness
Display interface: Type-C/HDMI
Touch interface: Type-C/USB
Support popular mini PCs such as Raspberry Pi, Jetson Nano, BB Black

£164.09 £191.98

Waveshare 7.8 inch 1872x 1404 E-Ink Display HAT for Raspberry Pi

Overview
This is an E-Ink display HAT for Raspberry Pi, 7.8 inch, 18721404 resolution, with embedded controller IT8951, communicating via USB/SPI/I80/I2C interface, supports partial refresh.
Due to the advantages like low power consumption, wide viewing angle, clear display without electricity, it is an ideal choice for applications such as ebook reader, e-ink display, industrial instruments, and so on.
No backlight, keeps displaying last content for a long time even when power down
Low power consumption, basically power is only required for refreshing
Standard Raspberry Pi 40PIN GPIO extension header, supports Raspberry Pi series boards
USB/SPI/I80/I2C interface, for connecting with host boards like Raspberry Pi/Nucleo, etc.
Comes with development resources and manual (examples for Raspberry Pi/STM32)

£116.78 £138.97

Waveshare 4.3 inch 800x600 Pixel Serial Interface Electronic Paper Display UART Module

Overview
This is a serial interface E-Ink display module, 4.3 inch, 800600 resolution, with embedded font libraries, ultra low power consumption.
You do not have to know anything about the complex underlying details of e-Paper, nor the specific algorithms of displaying graphics, texts, and images. All it needs is the serial interface, and all it matters is your creativity.
Easy to use, displays any contents via one serial interface, including geometric graphics, texts, and images
Embedded font libraries, supports 32, 48 and 64 dot matrix GBK Chinese fonts and English fonts
Built-in 128MB NandFlash, allows the font/image data to be stored in either an external TF card or the internal NandFlash
4 grey level displaying, 800600 resolution
Adjustable serial interface baud rate, 115200 by default when power up

£49.65 £59.08

Waveshare 1.54 inch 200x200 E-Ink Display Module

Overview
This is an E-Ink display module, 1.54inch, 200x200 resolution, with embedded controller, communicating via SPI interface, supports partial refresh.
Due to the advantages like ultra low power consumption, wide viewing angle, clear display without electricity, it is an ideal choice for applications such as shelf label, industrial instrument, and so on.
No backlight, keeps displaying last content for a long time even when power down
Ultra low power consumption, basically power is only required for refreshing
SPI interface, for connecting with controller boards like Raspberry Pi/Arduino/Nucleo, etc.
Onboard voltage translator, compatible with 3.3V/5V MCUs
Comes with development resources and manual (examples for Raspberry Pi/Jetson Nano/Arduino/STM32)

£11.89 £13.67

Waveshare 2.13 inch 212x104 Pixel Flexible E-Paper (D) E-Ink Raw Display Panel

212x104, 2.13inch flexible E-Ink raw display, black/white dual-color, SPI interface, without PCB
Overview
This is a flexible E-Ink raw display, 2.13inch, 212x104 resolution, with embedded controller, communicating via SPI interface, supports partial refresh.
Compared with normal e-Paper panels, this flexible panel allows bending without being damaged, and it's thinner and lighter.
Combined with the advantages like ultra low power consumption, wide viewing angle, clear display without electricity, it is an ideal choice for applications where curved surface display is required, such as industrial instruments, smart wearable-devices, and so on.
Flexible e-Paper, the display section is bendable (DON'T bend the FPC section)
No backlight, keeps displaying last content for a long time even when power down
Ultra low power consumption, basically power is only required for refreshing

£12.30 £14.14

Waveshare 600x448, 5.83inch E-Ink raw display

600x448, 5.83inch E-Ink raw display, SPI interface, without PCB
Overview
This is an E-Ink raw display, 5.83inch, 600x448 resolution, with embedded controller, communicating via SPI interface.
Due to the advantages like ultra low power consumption, wide viewing angle, clear display without electricity, it is an ideal choice for applications such as shelf label, industrial instrument, and so on.
No backlight, keeps displaying last content for a long time even when power down
Ultra low power consumption, basically power is only required for refreshing
Comes with development resources and manual (driver board schematic, examples for Raspberry Pi/Arduino/STM32)
Operating voltage: 3.3V

£38.85 £45.85
