    Waveshare 1.54 inch E-Ink Display Module - 1 Waveshare 1.54 inch E-Ink Display Module - 2 Waveshare 1.54 inch E-Ink Display Module - 3 Waveshare 1.54 inch E-Ink Display Module - 4

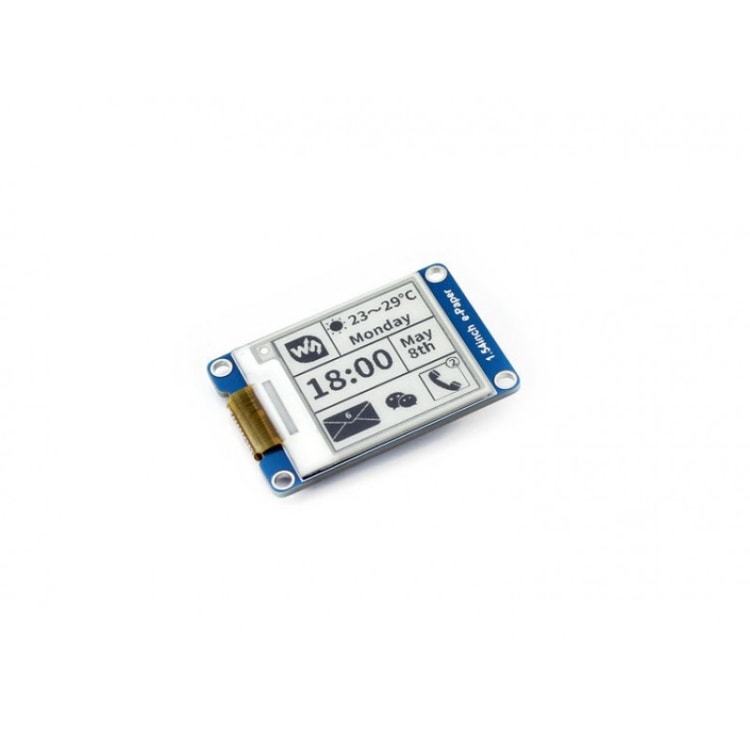

    Waveshare 1.54 inch 200x200 E-Ink Display Module

    Be the first to review this product
    SKU: 06-0197818
    • Overview
    • This is an E-Ink display module, 1.54inch, 200x200 resolution, with embedded controller, communicating via SPI interface, supports partial refresh.
    • Due to the advantages like ultra low power consumption, wide viewing angle, clear display without electricity, it is an ideal choice for applications such as shelf label, industrial instrument, and so on.
    • No backlight, keeps displaying last content for a long time even when power down
    • Ultra low power consumption, basically power is only required for refreshing
    • SPI interface, for connecting with controller boards like Raspberry Pi/Arduino/Nucleo, etc.
    • Onboard voltage translator, compatible with 3.3V/5V MCUs
    • Comes with development resources and manual (examples for Raspberry Pi/Jetson Nano/Arduino/STM32)
    £11.89
    £13.67
    Availability: In stock
    i h
    Ship to
    *
    *
    Shipping Method
    Name
    Estimated Delivery
    Price
    No shipping options
    Features
    • Overview
    • 1. This is an E-Ink display module, 1.54inch, 200x200 resolution, with embedded controller, communicating via SPI interface, supports partial refresh.
    • 2. Due to the advantages like ultra low power consumption, wide viewing angle, clear display without electricity, it is an ideal choice for applications such as shelf label, industrial instrument, and so on.
    • Features
    • 1. No backlight, keeps displaying last content for a long time even when power down
    • 2. Ultra low power consumption, basically power is only required for refreshing
    • 3. SPI interface, for connecting with controller boards like Raspberry Pi/Arduino/Nucleo, etc.
    • 4. Onboard voltage translator, compatible with 3.3V/5V MCUs
    • 5. Comes with development resources and manual (examples for Raspberry Pi/Jetson Nano/Arduino/STM32)
    • Specifications
    • 1. Operating voltage: 3.3V/5V
    • 2. Interface: 3-wire SPI, 4-wire SPI
    • 3. Outline dimension: 48mm x 33mm
    • 4. Display size: 27.6mm x 27.6mm
    • 5. Dot pitch: 0.138 x 0.138
    • 6. Resolution: 200 x 200
    • 7. Display color: Black, white
    • 8. Grey level: 2
    • 9. Partial refresh time: 0.3s
    • 10. Refresh power: 26.4mW(typ.)
    • 11. Standby power: <0.017mW
    • 12. Viewing angle: >170 degree
    • Package Contents
    • 1. 1.54inch e-Paper Module x1
    • 2. PH2.0 20cm 8 Pin x1
    Packing List
    • Waveshare 1.54 inch 200x200 E-Ink Display Module
    • Original set and packaging
