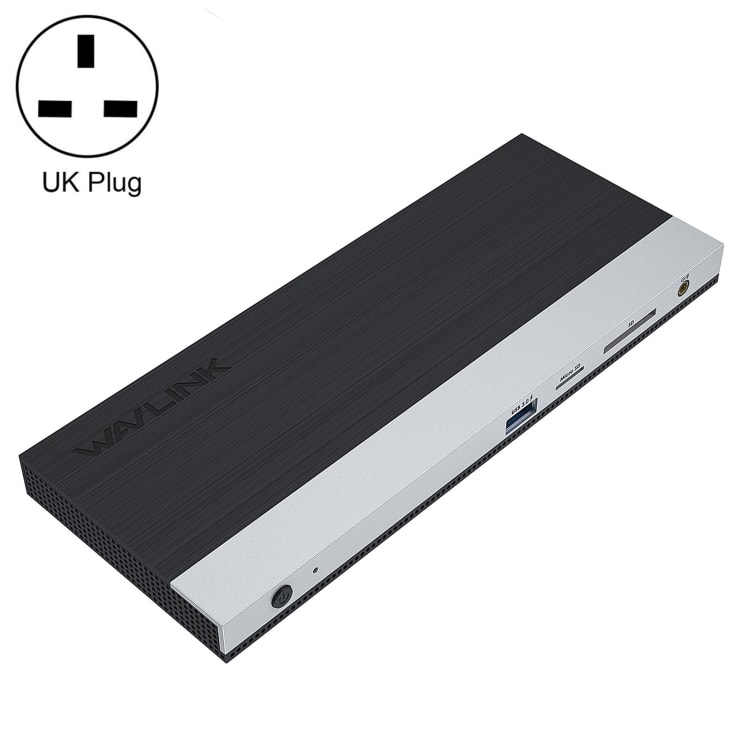

WAVLINK WL-UMD01 USB3.0 Splitter Docking Station Gigabit Ethernet/DP/HD Cable Converter (UK Plug)

Be the first to review this product

SKU: 06-0297487

Contains 2 x DP1.4 ports, 1 x HD 2.0 port, a Gigabit Ethernet port, a 3.5mm audio port, 4 x USB3.0 ports, a SD/TF card slot, a collection of 11 interfaces, greatly supplementing the ultra-thin notebook ports, to meet the office, creativity, life, entertainment, a variety of needs. Capable of simultaneous screen expansion or triple display, it is suitable for notebooks with full-featured Type-C or Thunderbolt 3/4 ports. This product is suitable for scenarios that require multiple displays such as meetings, design, programming, stock chart analysis, classrooms, and more.
With PD fast charging function, maximum charging power 65W/100W (Pro)
SD/TF card slot transfer speed 104 MB/s
4 x USB3.0-A ports with 5Gbps transfer rate (one A port with BC1.2 fast charging)
Built-in RJ45 Gigabit Ethernet card, adaptive 10/100/1000Mbps network
Built-in 3.5mm audio port for stereo output and microphone input
Host with full-featured Type-C interface supports full-featured output, if not full-featured, support for some extended functions
Supports Thunderbolt 3, 4 interface drive-free, plug and play

£85.33

£98.98

Availability: In stock

Qty:

i h

Ship to

Shipping Method

Name

Estimated Delivery

Price

No shipping options

Overview
Reviews

Features

Contains 2 x DP1.4 ports, 1 x HD 2.0 port, a Gigabit Ethernet port, a 3.5mm audio port, 4 x USB3.0 ports, a SD/TF card slot, a collection of 11 interfaces, greatly supplementing the ultra-thin notebook ports, to meet the office, creativity, life, entertainment, a variety of needs. Capable of simultaneous screen expansion or triple display, it is suitable for notebooks with full-featured Type-C or Thunderbolt 3/4 ports. This product is suitable for scenarios that require multiple displays such as meetings, design, programming, stock chart analysis, classrooms, and more.
1. With PD fast charging function, maximum charging power 65W/100W (Pro)
2. SD/TF card slot transfer speed 104 MB/s
3. 4 x USB3.0-A ports with 5Gbps transfer rate (one A port with BC1.2 fast charging)
4. Built-in RJ45 Gigabit Ethernet card, adaptive 10/100/1000Mbps network
5. Built-in 3.5mm audio port for stereo output and microphone input
6. Host with full-featured Type-C interface supports full-featured output, if not full-featured, support for some extended functions
7. Supports Thunderbolt 3, 4 interface drive-free, plug and play
8. Classic silver and black color, metal splicing, and brushed pattern square design add beauty to the desktop
Specifications:
1. Model: WL-UMDO1
2. Charging: 65W PD fast charging
3. HD Interface: HDx1(UMDO1), HDx2(UMD05)
4. DP port: DPx2(UMD01), DPx1(UMD05)
5. Video Output: Mono: DisplayPort(DP1.4): 4K 60Hz(HBR3, DP1.4)HD(HD 2.0): 4K 60Hz(HBR3, DP1.4)
6. Dual Display: Dual DisplayPort(DP1.4): 4K 60Hz(HBR3, DP1.4)DisplayPort(DP1.4) + HD(HD 2.0): 4K 60Hz(HBR3,DP1.4)
7. Triple Display: DisplayPort(DP1.4): 1080P 60Hz, DisplayPort(DP1.4): 1080P 60HzHD (HD 2.0): 1080P 60Hz
8. HD2.0x1, DP1.4x2: Triple Display: 1920x1080 60Hz (HBR3 DP 1.4), Dual display: 3840x2160 60Hz(HBR3 DP 1.4), Single display: 3840x2160 60Hz (HBR3 DP 1.4)
9. USB port: USB3.0x4 (1 of which supports BC1.2 fast charging)
10. Network port: support 1-1000M Ethernet
11. The card read: support SD/TF read at the same time
12. Audio: 3.5mm audio port
13. Power adapter: DC20V/5A, cable length 2 meters
14. Input Port: Type-C (USB3.1 Gen2)
15. Size: 207x83x17mm
16. Weight: 370g
17. Support System: Windows 7/8/10, for Mac OS
18. Interface: 2 x DP1.4, 1 x HD 2.0, 1 x Gigabit Ethernet, 1 x 3.5mm audio, 4 x USB3.0, 1 x SD card, 1 x TF card

Packing List

WAVLINK WL-UMD01 USB3.0 Splitter Docking Station Gigabit Ethernet/DP/HD Cable Converter (UK Plug)
Original set and packaging
