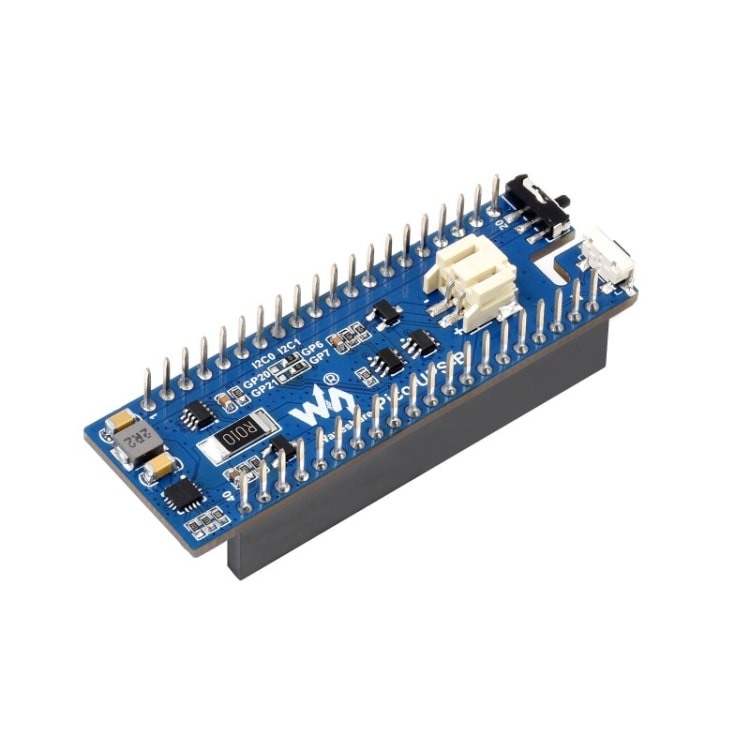

Waveshare UPS Module Uninterruptible Power Supply 600mAh Li-Po Battery Module Stackable Board for Raspberry Pi Pico

SKU: 06-0197786

The Pico-UPS-B is a dedicated UPS (Uninterruptible Power Supply) module designed for Raspberry Pi Pico. It incorporates Li-po battery switching charger with power path management, and voltage/current monitoring chip, allows monitoring the battery operating status via I2C bus. What is more, the male pin header make it possible to "stack" other modules on top.
Standard Raspberry Pi Pico header, supports Raspberry Pi Pico series boards
Incorporates Li-po battery switching charger with dynamic power path management, more stable power supply
I2C bus communication, monitoring the battery voltage, current, power, and remaining capacity in real time
Multi battery protection circuits: over charge/discharge protection, over current protection, short circuit protection, and reverse protection, more safe and stable
Onboard recharging indicator, power indicator, easy to check the battery status
Come with development resources and manual (Raspberry Pi Pico C/C++ and MicroPython examples)
Charging voltage: 5V

£13.31

£15.45

Availability: In stock

Qty:

i h

Ship to

Shipping Method

Name

Estimated Delivery

Price

No shipping options

Features

Features
The Pico-UPS-B is a dedicated UPS (Uninterruptible Power Supply) module designed for Raspberry Pi Pico. It incorporates Li-po battery switching charger with power path management, and voltage/current monitoring chip, allows monitoring the battery operating status via I2C bus. What is more, the male pin header make it possible to "stack" other modules on top.
1. Standard Raspberry Pi Pico header, supports Raspberry Pi Pico series boards
2. Incorporates Li-po battery switching charger with dynamic power path management, more stable power supply
3. I2C bus communication, monitoring the battery voltage, current, power, and remaining capacity in real time
4. Multi battery protection circuits: over charge/discharge protection, over current protection, short circuit protection, and reverse protection, more safe and stable
5. Onboard recharging indicator, power indicator, easy to check the battery status
6. Come with development resources and manual (Raspberry Pi Pico C/C++ and MicroPython examples)
Specification
1. Charging voltage: 5V
2. Control bus: I2C
3. Battery support: 600mAh 3.7V lithium battery
4. Size: 60 x 21mm

Packing List

Waveshare UPS Module Uninterruptible Power Supply 600mAh Li-Po Battery Module Stackable Board for Raspberry Pi Pico
Original set and packaging
