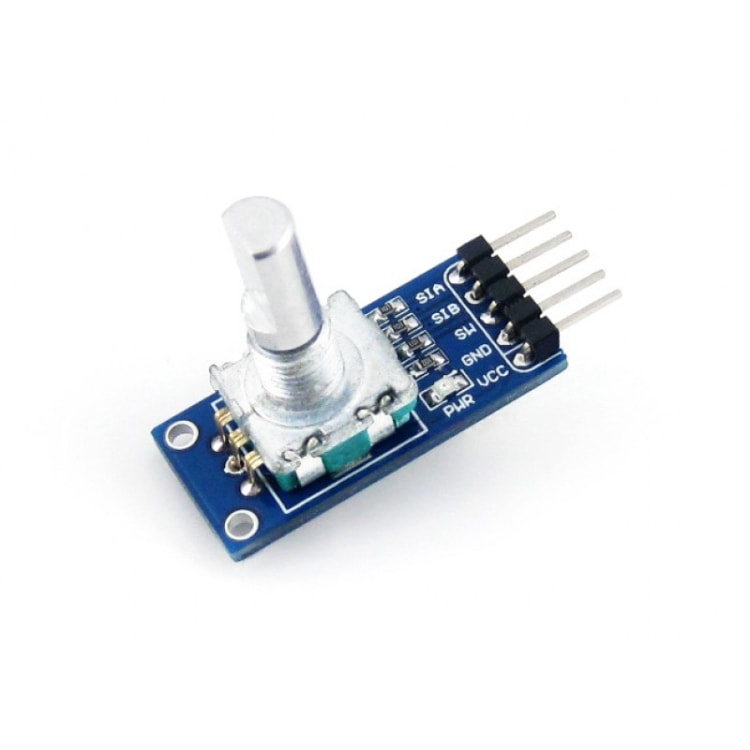

Waveshare Rotation Sensor

Be the first to review this product

SKU: 06-0197703

Overview
Detects clockwise/anti-clockwise rotations: degrees and laps
Pulses per lap: 15
Power: 3.0V ~ 5.3V
Dimension: 32.1mm * 15.4mm
Mounting holes size: 2.0mm
Applications
Positioning in Industrial Controls

£6.79

£7.81

Availability: In stock

Qty:

i h

Ship to

*

*

Shipping Method

Name

Estimated Delivery

Price

No shipping options

Overview
Reviews

Features

Overview
Detects clockwise/anti-clockwise rotations: degrees and laps
Specifications
1. Pulses per lap: 15
2. Power: 3.0V ~ 5.3V
3. Dimension: 32.1mm * 15.4mm
4. Mounting holes size: 2.0mm
Applications
Positioning in Industrial Controls
How to Use
In the case of working with a MCU:
1. VCC -- 3.0V ~ 5.3V
2. GND -- Power supply ground
3. SW -- MCU.IO (encoder button status)
4. SIB -- MCU.IO (output status)
5. SIA -- MCU.IO (output status)

Packing List

Waveshare Rotation Sensor
Original set and packaging
