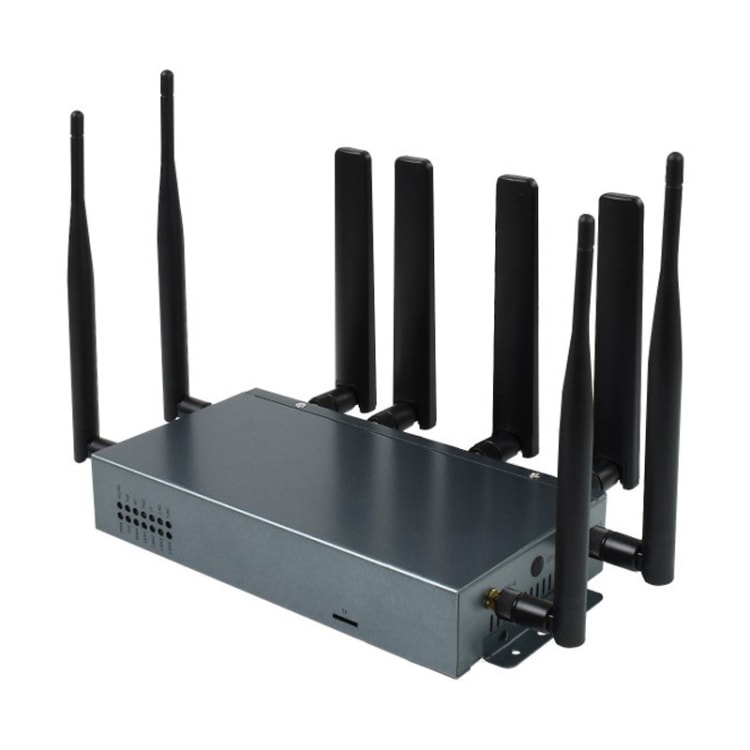

Waveshare RM520N-GL Wireless CPE Industrial 5G Router, Snapdragon X62 Onboard (EU Plug)

Be the first to review this product

SKU: 06-0109962

5G wireless specifications
5G Sub-6G:
SA: n1, n2, n3, n5, n7, n8, n12, n13, n14, n18, n20, n25, n26, n28, n29, n30, n38, n40, n41, n48, n66, n70, n71, n75, n76, n77, n78, n79
NSA: n1, n2, n3, n5, n7, n8, n12, n13, n14, n18, n20, n25, n26, n28, n29, n30, n38, n40, n41, n48, n66, n70, n71, n75, n76, n77, n78, n79
4G:
LTE-FDD: B1, B2, B3, B4, B5, B7, B8, B12, B13, B14, B17, B18, B19, B20, B25, B26, B28, B29, B30, B32, B66, B71
LTE-TDD: B34, B38, B39, B40, B41, B42, B43, B48
LAA:B46

£310.72

£369.76

Availability: In stock

Qty:

i h

Ship to

Shipping Method

Name

Estimated Delivery

Price

No shipping options

Overview
Reviews

Features

1. 5G wireless specifications
-5G Sub-6G:
SA: n1, n2, n3, n5, n7, n8, n12, n13, n14, n18, n20, n25, n26, n28, n29, n30, n38, n40, n41, n48, n66, n70, n71, n75, n76, n77, n78, n79
NSA: n1, n2, n3, n5, n7, n8, n12, n13, n14, n18, n20, n25, n26, n28, n29, n30, n38, n40, n41, n48, n66, n70, n71, n75, n76, n77, n78, n79
-4G:
LTE-FDD: B1, B2, B3, B4, B5, B7, B8, B12, B13, B14, B17, B18, B19, B20, B25, B26, B28, B29, B30, B32, B66, B71
LTE-TDD: B34, B38, B39, B40, B41, B42, B43, B48
LAA:B46
-UMTS: B1, B2, B4, B5, B8, B19
-GNSS: GPS / GLONASS / Beidou (Beidou) / Galileo / QZSS (only supported by RM520N-GL)
2. Data rate
-5G Sub-6G:
SA: 2.4 Gbps (DL) / 900 Mbps (UL)
NSA: 3.4 Gbps (DL)/550 Mbps (UL)
-LTE: 1.6 Gbps (DL)/200 Mbps (UL)
-HSPA+ 42 Mbps (DL)/5.76 Mbps (UL)
3. WIFI wireless specifications
-WiFi standards: IEEE802.11b/g/n, IEEE802.11Wi-Fi 5(a/b/g/n/ac) compatible, 2.4GHz, 5.8GHz, 2T2R, support AP mode
-Data rate: 2.4GHz: up to 300Mbps; 5.8GHz: up to 866Mbps
-Authentication: Supports WEP, WPA, WPA2 and other encryption methods
4. Interface
-M.2: 1 connector, comes with 1 RM520N-GL module by default, supports other 5G modules
-Mini PCIE: 3 connectors, equipped with 1 2.4GHz and 1 5.8GHz WiFi module, can connect more than 1 4G module
-WAN: 1x 10/100/1000M Ethernet, auto-negotiation MDI/MDIX, built-in 1.5KV electromagnetic isolation protection
(The WAN RJ45 can be used as a LAN RJ45 port, so there can be a total of 5 LAN RJ45 ports)
-LAN: 4x 10/100/1000M Ethernet, auto-negotiation MDI/MDIX, built-in 1.5KV electromagnetic isolation protection
-Serial port: 1x RS232 + 1x RS485, built-in ESD protection
-SIM/UIM card slot: drawer-type SIM card slot to prevent the SIM card from falling off, with built-in 15KV ESD protection
-Antenna interface: SMA standard antenna interface, equipped with 4x 5G antenna and 4x WiFi antenna by default
-TF card slot: for external storage
-Power supply: standard power interface, providing 12~24V input, embedded power reverse protection and overvoltage protection
-RESET button: Press and hold for 5-10 seconds and release to restore the router to factory settings.
-Indicators: PWR, SYS, 5G, 4G, WAN, LAN, TF, 2.4G, 5.8G status indicators
5. Power supply
-Power adapter: DC 12V/2A
-Power input range: 12-24V
-Power consumption: data mode: less than 1A@12V, idle mode: less than 500mA@l2V
6. Physical parameters
-Material: metal shell
-Protection level: IP30
-Operating temperature: -35 to 75 degrees Celsius
-Storage temperature: -40 to 85 degrees Celsius
-Relative humidity: 95 percent (non-condensing)
-Product size: 219 x 117 x 36.8mm
-Weight: 919 grams
Packing list:
-RM520N-GL 5G Router x 1
-5G antenna x 4
-WiFi antenna x 4
-12V power adapter x 1

Packing List

Waveshare RM520N-GL Wireless CPE Industrial 5G Router, Snapdragon X62 Onboard (EU Plug)
Original set and packaging
