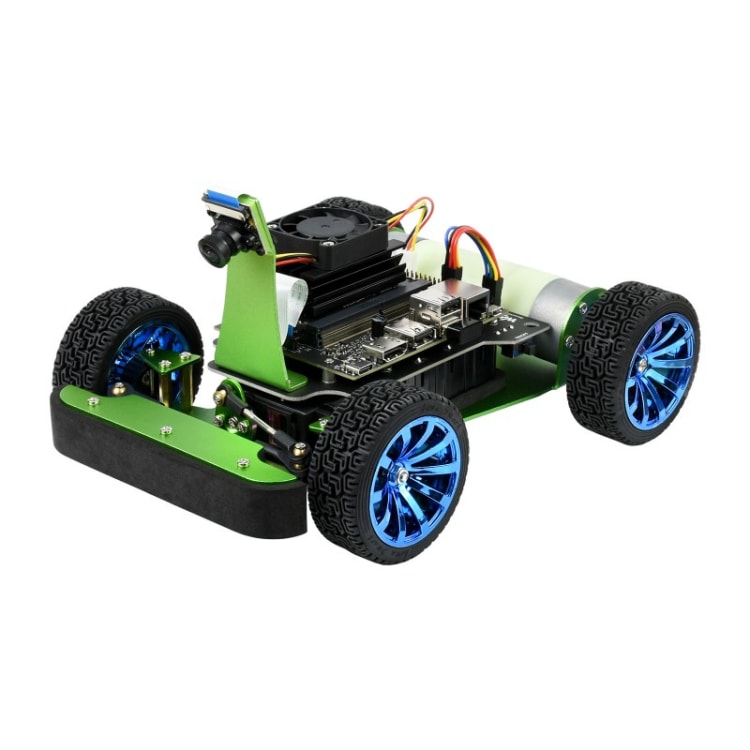

Waveshare JetRacer 2GB AI Kit, AI Racing Robot Powered by Jetson Nano 2GB, EU Plug

SKU: 06-0148330

Onboard three 18650 batteries, 7800mAh, up to 12.6V voltage output, and stronger motor power (not included batteries).
Onboard S-8254AA + AO4407A lithium battery protection circuit, with anti-overcharge, anti-over-discharge, anti-over-current and short-circuit protection functions.
The onboard APW7313 voltage regulator chip can provide a stable 5V voltage to the Jetson Nano.
The onboard TB6612FNG dual H-bridge motor driver chip can drive the left and right motors to work.
Onboard 0.91-inch 128 x 32 resolution OLED, real-time display of car IP address, memory, power, etc.
The onboard ADS1115 AD acquisition chip is convenient for real-time monitoring of battery power.
Package List
Jetson Nano 2GB Developer Kit

£241.57

£294.71

Availability: In stock

Qty:

i h

Ship to

Shipping Method

Name

Estimated Delivery

Price

No shipping options

Features

Features
1. Onboard three 18650 batteries, 7800mAh, up to 12.6V voltage output, and stronger motor power (not included batteries).
2. Onboard S-8254AA + AO4407A lithium battery protection circuit, with anti-overcharge, anti-over-discharge, anti-over-current and short-circuit protection functions.
3. The onboard APW7313 voltage regulator chip can provide a stable 5V voltage to the Jetson Nano.
4. The onboard TB6612FNG dual H-bridge motor driver chip can drive the left and right motors to work.
5. Onboard 0.91-inch 128 x 32 resolution OLED, real-time display of car IP address, memory, power, etc.
6. The onboard ADS1115 AD acquisition chip is convenient for real-time monitoring of battery power.
Package List
1. Jetson Nano 2GB Developer Kit
2. Micro SD Card 64GB
3. JetRacer metal kit 6PCS
4. EVA felt pad 2PCS
5. 3D-printed motor lid
6. JetRacer expansion board
7. IMX219-160 Camera
8. USB wireless NIC
9. Acrylic piece
10. Servo mount
11. Metal Gearmotor 2PCS
12. Tire 4PCS
13. Coupler 2PCS
14. MG996R servo
15. MG996R servo wheel
16. Steering knuckle 2PCS
17. Ball bearing 4PCS
18. M3 plastic ball joint 4PCS
19. M3 pull bar 2PCS
20. 12.6V 2A battery charger + EU head
21. Wireless gamepad
22. 6Pin cable
23. Spanner 2PCS
24. Screwdriver 2PCS
25. Mini cross wrench sleeve
26. 4010 cooling fan
27. Micro SD card reader
28. Screws pack
29. Track map

Packing List

Waveshare JetRacer 2GB AI Kit, AI Racing Robot Powered by Jetson Nano 2GB, EU Plug
Original set and packaging
