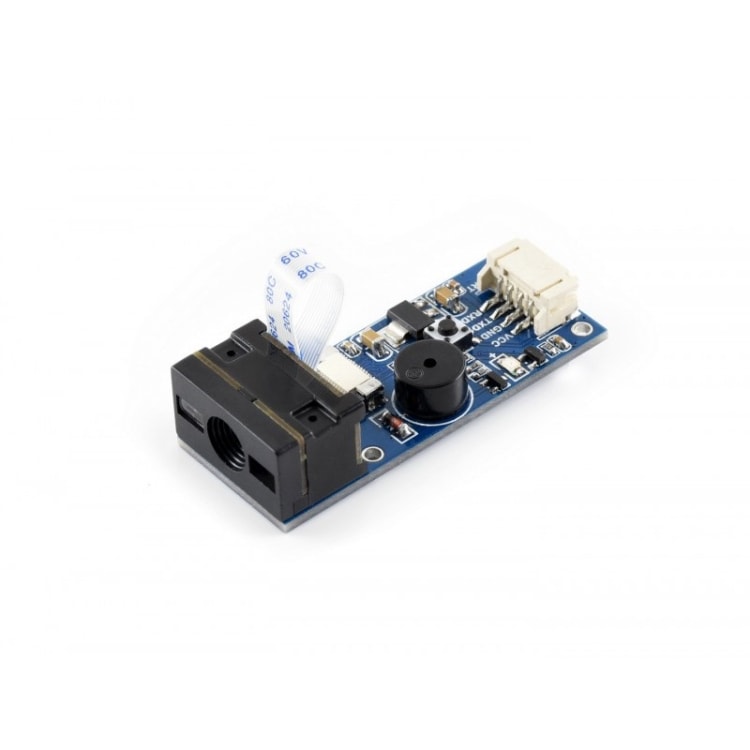

Waveshare Barcode Scanner Module, 1D/2D Codes Reader

SKU: 06-0197690

Overview
1. This is a small 1D/2D codes reader, by using the intelligent image recognition algorithm, it will decode the barcode or 2D code on paper or screen, fast and accurately.
Through the onboard USB and UART interface, it can be directly plugged into a computer, or be easily integrated to kinds of devices due to its small form factor.
Features
1. Easy to use, requires no knowledges of image recognition
Decodes various common 1D/2D codes such as Barcode, QR code etc.
Onboard micro USB and UART serial port, allows to connect with computers or embedded devices
Configurable via scanning 'configuration code'

£29.90

£36.18

Availability: In stock

Qty:

i h

Ship to

Shipping Method

Name

Estimated Delivery

Price

No shipping options

Features

Overview
1. This is a small 1D/2D codes reader, by using the intelligent image recognition algorithm, it will decode the barcode or 2D code on paper or screen, fast and accurately.
2. Through the onboard USB and UART interface, it can be directly plugged into a computer, or be easily integrated to kinds of devices due to its small form factor.
Features
1. Easy to use, requires no knowledges of image recognition
2. Decodes various common 1D/2D codes such as Barcode, QR code etc.
3. Onboard micro USB and UART serial port, allows to connect with computers or embedded devices
4. Configurable via scanning 'configuration code'
5. Onboard light source, works in the dark
Specifications
1. Operating voltage: 5V
2. Operating current: 135mA (scanning), 58mA (standby), 2mA (sleep)
3. Operating temperature: 0C~60C
4. Operating humidity: 5%~95% (Non-condensing)
5. Communication interface: UART, USB
6. Decodes 1D codes: Codebar, Code 11, Code 39/Code 93, UPC/EAN, Code 128/EAN128, Interleaved 2 of 5, Matrix 2 of 5, MSI Code, Industrial 2 of 5, GS1 Databar(RSS)
7. Decodes 2D codes: QR code, Data Matrix, PDF417
8. Light source: white
9. Scan angels: roll 360, skew 65, pitch 60
10. Field of view: 28 (horizontal), 21.5 (vertical)
11. Dimension: 53.3mm x 21.4mm
12. Package contents:
- Barcode Scanner Module x1
- USB type A plug to micro B plug cable x1
- PH2.0 4Pin x1
