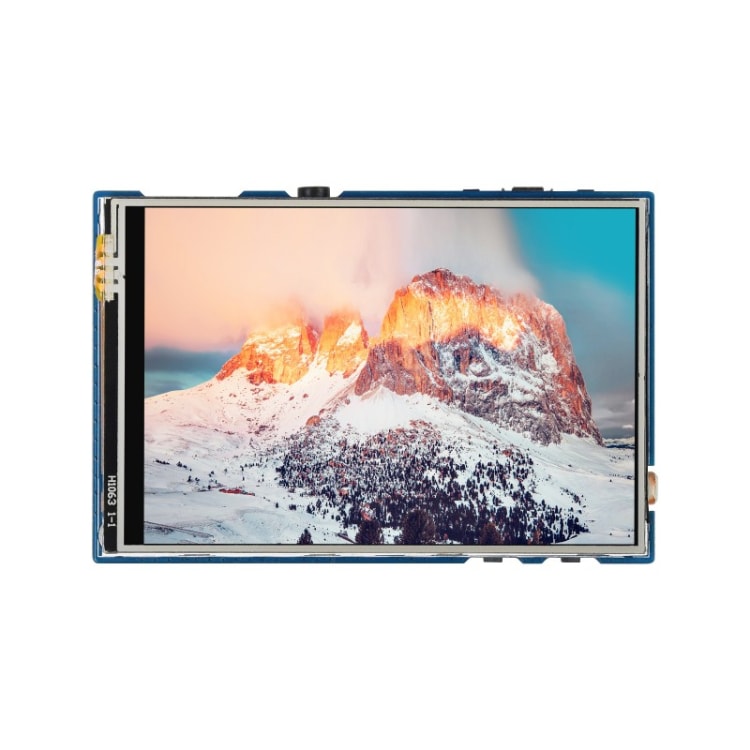

Waveshare 3.5 inch IPS Screen Overall Evaluation Board for Raspberry Pi Pico, Misc Onboard Components For Easily Evaluating The RP2040

SKU: 06-0197796

The Pico-Eval-Board is an overall evaluation solution designed for Raspberry Pi Pico. With 3.5inch 65K colorful LCD display and misc helpful onboard components, this evaluation board allows you to try almost every on chip peripheral of the RP2040, eliminating the mess wiring. It is an ideal choice for user to fast get started with the Raspberry Pi Pico, as well as the RP2040 chip.
Standard Raspberry Pi Pico header, supports Raspberry Pi Pico series boards
3.5 inch resistive touch screen, 65K colorful, bringing clear and vivid display effect
Standard 3.5mm audio jack, for headphone or other audio peripherals
Micro SD card slot through the SDIO interface, faster access speed than SPI interface
Integrates battery header and recharge circuit, allows it keep running without wired power supply
Other rich resources like buzzer, photoresistor, and RGB LED...
Comes with development resources and manual (Raspberry Pi Pico C/C++ and MicroPython examples)

£33.04

£40.31

Availability: In stock

Qty:

i h

Ship to

Shipping Method

Name

Estimated Delivery

Price

No shipping options

Features

Features
The Pico-Eval-Board is an overall evaluation solution designed for Raspberry Pi Pico. With 3.5inch 65K colorful LCD display and misc helpful onboard components, this evaluation board allows you to try almost every on chip peripheral of the RP2040, eliminating the mess wiring. It is an ideal choice for user to fast get started with the Raspberry Pi Pico, as well as the RP2040 chip.
1. Standard Raspberry Pi Pico header, supports Raspberry Pi Pico series boards
2. 3.5 inch resistive touch screen, 65K colorful, bringing clear and vivid display effect
3. Standard 3.5mm audio jack, for headphone or other audio peripherals
4. Micro SD card slot through the SDIO interface, faster access speed than SPI interface
5. Integrates battery header and recharge circuit, allows it keep running without wired power supply
6. Other rich resources like buzzer, photoresistor, and RGB LED...
7. Comes with development resources and manual (Raspberry Pi Pico C/C++ and MicroPython examples)
Specification
1. Operating voltage: 5V
2. Touch Type: Resistive
3. Resolution:480x320 pixels
4. Display color: 65K colorful
5. Communication BUS: SPI
6. Display panel: IPS
7. Display size: 73.44 x 48.96 mm
8. Pixel size: 0.153 x 0.153 mm
9. Controller: ILI9488/XPT2046
10. Size: 86.00 x 57.20 mm
Package List
1. Pico-Eval-Board x 1
2. Standoff pack x 1

Packing List

Waveshare 3.5 inch IPS Screen Overall Evaluation Board for Raspberry Pi Pico, Misc Onboard Components For Easily Evaluating The RP2040
Original set and packaging
