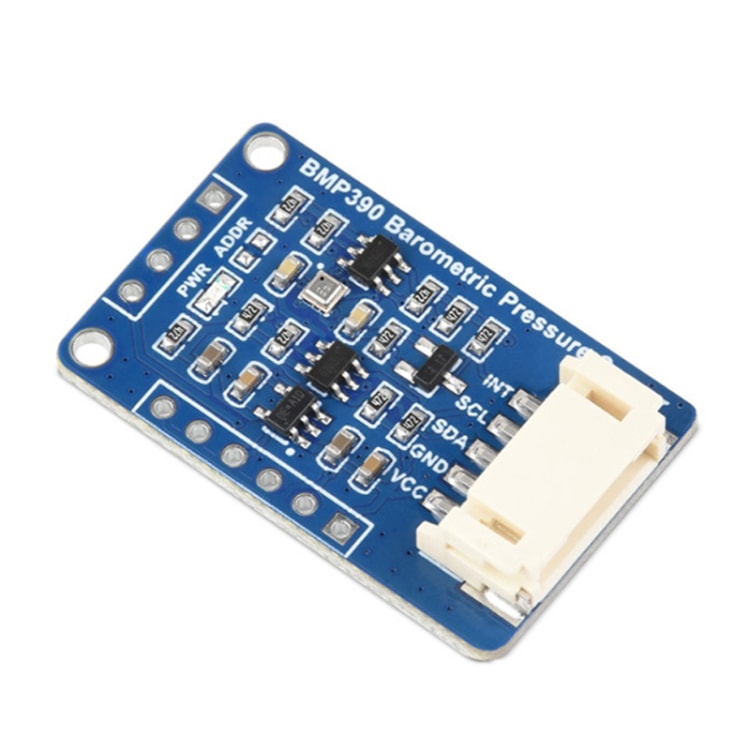

Waveshare 24658 BMP390 High Precision Barometric Pressure/Altitude/Temperature Measuring Sensor

SKU: 06-0267581

Onboard BMP390 sensor, can measure atmospheric pressure, altitude and temperature
Support I2C interface communication, can set I2C address, support I2C bus cascade
Support SPI interface communication, default is I2C interface, SPI can be enabled through CS chip select
Onboard level conversion circuit, compatible with 3.3V/5V working level
Function: monitor atmospheric pressure, altitude, temperature
Application field: smart home
Communication interface: I2C / SPI
Air pressure measurement range: 300-1250hPa

£13.44

£16.40

Availability: In stock

Qty:

i h

Ship to

Shipping Method

Name

Estimated Delivery

Price

No shipping options

Features

Features:
1. Onboard BMP390 sensor, can measure atmospheric pressure, altitude and temperature
2. Support I2C interface communication, can set I2C address, support I2C bus cascade
3. Support SPI interface communication, default is I2C interface, SPI can be enabled through CS chip select
4. Onboard level conversion circuit, compatible with 3.3V/5V working level
Product parameters:
1. Function: monitor atmospheric pressure, altitude, temperature
2. Application field: smart home
3. Communication interface: I2C / SPI
4. Air pressure measurement range: 300-1250hPa
5. Absolute air pressure accuracy: +/-0.5hPa (@300-1100hPa, 0 to 65 degrees Celsius)
6. Relative air pressure accuracy: +/-0.3hPa (@700-1100hPa, 25 to 40 degrees Celsius)
7. Temperature offset coefficient: +/-0.6Pa/K (@900hPa, 25 to 40 degrees Celsius)
8. Temperature absolute accuracy: +/-0.5 degrees Celsius (0 to 65 degrees Celsius)
9. Supported sampling rate: 200Hz
10. Operating temperature: -40 to 85 degrees Celsius
11. Product size: 32 x 20mm

Packing List

Waveshare 24658 BMP390 High Precision Barometric Pressure/Altitude/Temperature Measuring Sensor
Original set and packaging
