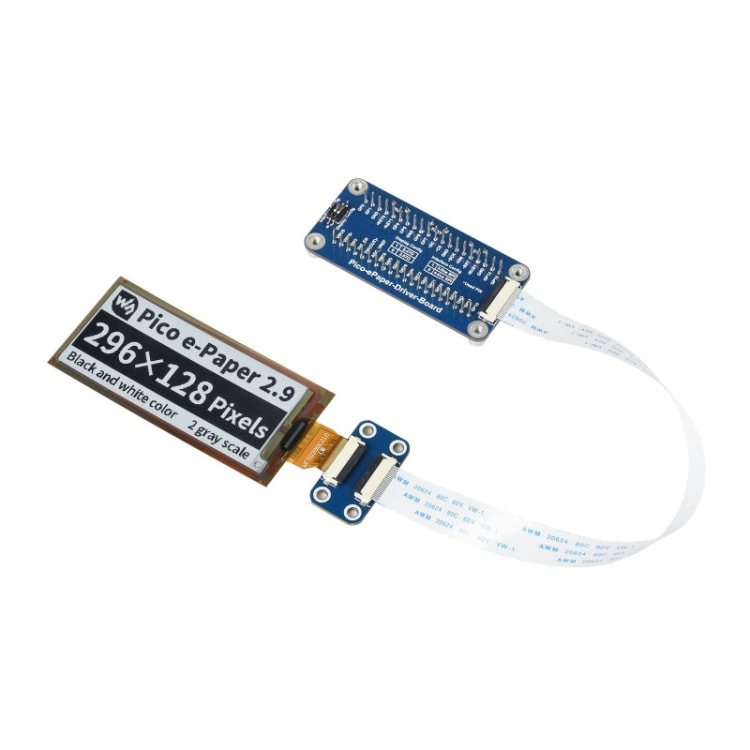

Waveshare 2.9 inch 296 x 128 Pixel Black/White Flexible E-Paper E-Ink Display Module for Raspberry Pi Pico, SPI Interface

SKU: 06-0197795

Flexible e-Paper panel, the display section is bendable (DONOT bend the FPC section)
No backlight, keeps displaying last content for a long time even when power down
Ultra low power consumption, basically power is only required for refreshing
SPI interface, requires minimal IO pins
2x user buttons and 1x reset button for easy interacting
Comes with development resources and manual (Raspberry Pi Pico C/C++ and MicroPython examples)
Operating voltage: 3.3V
Display color: Black, white

£19.80

£22.77

Availability: Out of stock

Qty:

i h

Ship to

Shipping Method

Name

Estimated Delivery

Price

No shipping options

Features

Features
1. Flexible e-Paper panel, the display section is bendable (DONOT bend the FPC section)
2. No backlight, keeps displaying last content for a long time even when power down
3. Ultra low power consumption, basically power is only required for refreshing
4. SPI interface, requires minimal IO pins
5. 2x user buttons and 1x reset button for easy interacting
6. Comes with development resources and manual (Raspberry Pi Pico C/C++ and MicroPython examples)
Specification
1. Operating voltage: 3.3V
2. Display color: Black, white
3. Resolution: 296 x 128 pixels
4. Grey scale: 2
5. Interface: 3-wire SPI, 4-wire SPI
6. Viewing angle: Greater than 170 degree
7. Partial refresh time: 0.3s
8. Full refresh time: 2s
9. Dimensions: 79.0 x 36.7mm
10. Display size: 66.9 x 29.06mm
11. Refresh power: 26.4mW (typ.)
12. Standby current: Less than 0.01uA (almost none)
13. Dot pitch: 0.227 x 0.226mm
Package List
1. 2.9inch e-Paper (D) x1
2. Pico-ePaper-Driver-Board x1
3. Standoff pack x1

Packing List

Waveshare 2.9 inch 296 x 128 Pixel Black/White Flexible E-Paper E-Ink Display Module for Raspberry Pi Pico, SPI Interface
Original set and packaging
