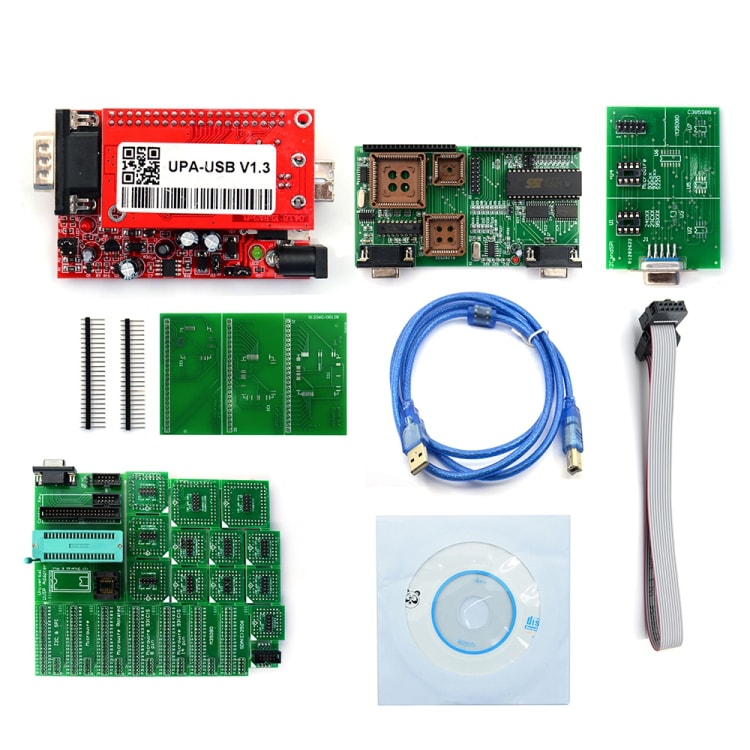

UPA V1.3 Car USB Programmer ECU Chip Tuning Eeprom Full Set

Be the first to review this product

SKU: 06-0223139

This set of New UPA USB Programmer main unit used for main unit damaged
Software version: V1.3
EEproms: Simply connect the mainboard to the UPA programmer directly or by using a DB9 male / female extension cable (1:1). Insert the correct config key into the slot of the mainboard and start programming either via the ZIF or SOIC Socket. You can also use the included DIL to 10pin F-lat-ribbon header, put it inside the ZIF socket and wire up an SOIC clip or clamps for ISP use from there.
M-otorola MCUs: Pick the Adapter you want to use, attach the flat cable to the Adapter (PIN1 is always indicated, on both the cable and also the Adapter) and also to the 10pin ISP connector of main board. Select the VCC supply source by the jumper on the mainboard next to the ISP connector (on = target supplied from upa, off = target got own supply). Slide the Adapter over the soldered PLCC MCU on the target PCB. (No soldering, no pinout reviewing, no pin counting, saves lots of time and hassle and let you make your job faster, precise and easier)
Once your workshop is equipped with our Adapter Set you will have an all new UPA Experience.
STMicroelectronics ST62*:
ST6240, ST6245, ST6249
NSC CR16*: CR16HCS5(9), CR16MCS5(9), CR16MES5(9), CR16MFS5(9), CR16MCT5/9, CR16HCT5/9

£33.35

£38.69

Availability: In stock

Qty:

i h

Ship to

Shipping Method

Name

Estimated Delivery

Price

No shipping options

Overview
Reviews

Features

1. This set of New UPA USB Programmer main unit used for main unit damaged
2. Software version: V1.3
3. EEproms: Simply connect the mainboard to the UPA programmer directly or by using a DB9 male / female extension cable (1:1). Insert the correct config key into the slot of the mainboard and start programming either via the ZIF or SOIC Socket. You can also use the included DIL to 10pin F-lat-ribbon header, put it inside the ZIF socket and wire up an SOIC clip or clamps for ISP use from there.
4. M-otorola MCUs: Pick the Adapter you want to use, attach the flat cable to the Adapter (PIN1 is always indicated, on both the cable and also the Adapter) and also to the 10pin ISP connector of main board. Select the VCC supply source by the jumper on the mainboard next to the ISP connector (on = target supplied from upa, off = target got own supply). Slide the Adapter over the soldered PLCC MCU on the target PCB. (No soldering, no pinout reviewing, no pin counting, saves lots of time and hassle and let you make your job faster, precise and easier)
Once your workshop is equipped with our Adapter Set you will have an all new UPA Experience.
5. STMicroelectronics ST62*:
ST6240, ST6245, ST6249
NSC CR16*: CR16HCS5(9), CR16MCS5(9), CR16MES5(9), CR16MFS5(9), CR16MCT5/9, CR16HCT5/9
for M-otorola HC05*: MC68HC05B6, MC68HC05B8, MC68HC05B16, MC68HC705B16, MC68HC05B32, MC68HC05E6, MC68HC705E6, MC68HC05H12, MC68HC05L28, MC68HC05P3, MC68HC705P3*,MC68HC05X16, MC68HC05X32
for M-otorola HC08*: MC68HC08AS20, MC68HC08AS32, MC68HC08AS60, MC68HC08AZ32, MC68HC(9)08AZ32A, MC68HC908AZ60, MC68HC908AZ60A
for M-otorola HC11*: MC68HC11A1, MC68HC11A8, MC68HC11E9, MC68HC11EA9, MC68HC11E20, MC68HC11F1, MC68HC11K4, MC68HC11KA2, MC68HC11KA4, MC68HC11KG4, MC68HC11KS2, MC68HC11KS8, MC68HC11L6, MC68HC11P2, MC68HC11PA8, MC68HC11PH8
for M-otorola HC12*: MC68HC912B32, MC68HC912BE32, MC68HC912D60, MC68HC912D60A, MC68HC912DC128A, MC68HC912DG128, MC68HC912DG128A
for M-otorola HCS12*: MC9S12D64, MC9S12A128, MC9S12DG128, MC9S12DG256, MC9S12H128, MC9S12H256

Packing List

UPA V1.3 Car USB Programmer ECU Chip Tuning Eeprom Full Set
Original set and packaging
