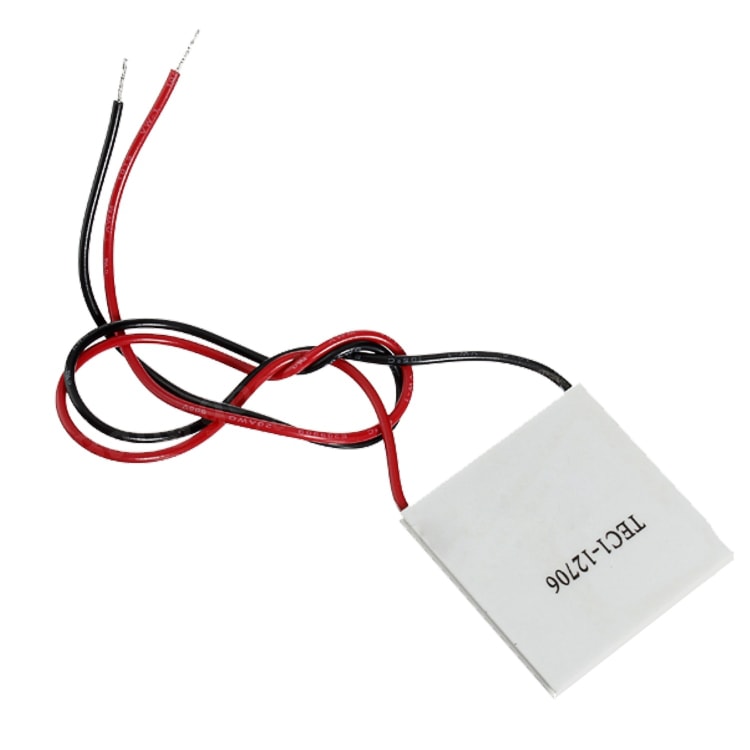

LDTR-WG0227 TEC1-12706 40x40mm Thermoelectric Cooler Peltier Refrigeration Plate Module, 12V 60W

SKU: 06-0136408

Its work is characterized by side refrigeration and side fever
Hot and cold on both sides of the temperature difference of 68 degrees
Connected to the 12-volt power supply cooling piece on both sides there will be difference in temperature, side cold side of the heat, do not long power cooler radiator, otherwise it will cause cooler internal overheating and burning
These devices must be used in conjunction with a heat sink to avoid burned
Each device is full inspected and tested
Fitted with 6-inch insulated leads
Size: 40mm x 40mm
Operates from 0~15.2V and 0~6A

£4.71

£5.46

Availability: In stock

Qty:

i h

Ship to

Shipping Method

Name

Estimated Delivery

Price

No shipping options

Features

Features
1. Its work is characterized by side refrigeration and side fever
2. Hot and cold on both sides of the temperature difference of 68 degrees
3. Connected to the 12-volt power supply cooling piece on both sides there will be difference in temperature, side cold side of the heat, do not long power cooler radiator, otherwise it will cause cooler internal overheating and burning
4. These devices must be used in conjunction with a heat sink to avoid burned
5. Each device is full inspected and tested
6. Fitted with 6-inch insulated leads
Specification
1. Size: 40mm x 40mm
2. Operates from 0~15.2V and 0~6A
3. Operates Temperature: -30C to 70C
4. Max power consumption: 60W
5. MaterialSemiconductor/ceramic plates
4. Package included: 1 x cooler plate module
Installation
Cooling piece is very simple to install and use. Before installation, to find a dry cell, connected to the two leads of the cooler, obviously cold you can feel at one end and the other end of fever, remember that the polarity of the lead and determine a good cooler cold and hot end. If you want to get a bigger system Ling, it is recommended that two cooling mode, with two stack up with the above, a grim absorption following a fever, the experiments prove two refrigeration effect is much better than the single-stage, the condition can choose three, of course, have a large power supply support.

Packing List

LDTR-WG0227 TEC1-12706 40x40mm Thermoelectric Cooler Peltier Refrigeration Plate Module, 12V 60W
Original set and packaging

0 review(s)

Write your own review Close

Customers who bought this item also bought

TEC1-12710 Thermoelectric Cooler Peltier Element Module

Number of component pairs: 127
Assembly pressure: 85N/cm2
Be sure to apply thermal grease when installing the radiator
The literal is cold side, and the non-literal is hot side
Packaging process: standard 704 silicone rubber seal around
Packaging standard: foam box packaging, storage conditions ambient temperature -10 ~ 40 degrees Celsius
Working environment: temperature range -5583 degrees Celsius (excessive ambient temperature will directly affect the cooling efficiency)
The working state of the cooling plate is that one side is cooling and the other side is heating, and the heating surface must be well dissipated during work. It is strictly forbidden to energize for more than 2 seconds without heat dissipation, so as to avoid overheating and burning.

£6.47 £7.56
