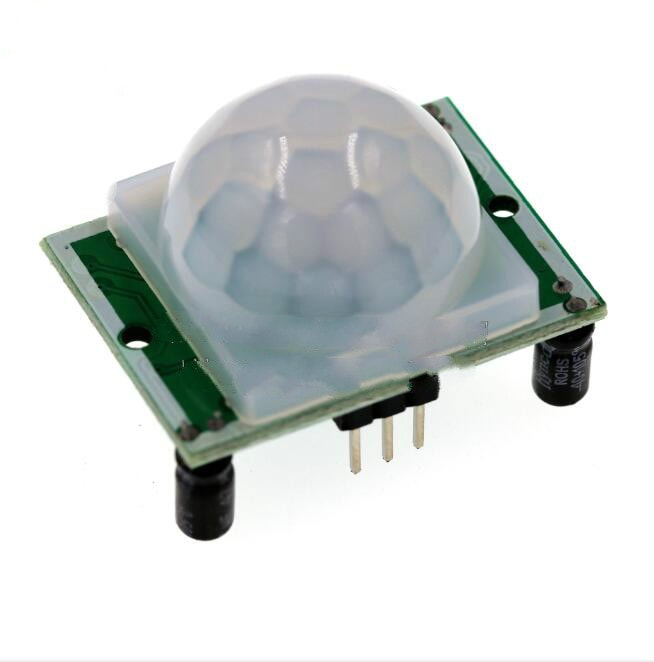

HC-SR501 Module Human Infrared Sensor Module SUNLEPHANT Pyroelectric Infrared Sensor

SKU: 06-0136716

Operating voltage range: DC voltage 5-20V
Static current: <65uA
Level output: 3.3 V high / low 0V
Trigger mode: L non-repeatable trigger / H repeat trigger (default repeat trigger)
Delay time: 0.5-200S (adjustable) can be made in the range of a few seconds - tens of minutes
Blocking time: 0.2S can be made in the range of a few seconds - tens of seconds
Circuit board dimensions: 32mm*24mm
Sensing range: <120 degree cone angle, in 7m

£4.72

£5.71

Availability: In stock

Qty:

i h

Ship to

Shipping Method

Name

Estimated Delivery

Price

No shipping options

Features

1. Operating voltage range: DC voltage 5-20V
2. Static current: <65uA
3. Level output: 3.3 V high / low 0V
4. Trigger mode: L non-repeatable trigger / H repeat trigger (default repeat trigger)
5. Delay time: 0.5-200S (adjustable) can be made in the range of a few seconds - tens of minutes
6. Blocking time: 0.2S can be made in the range of a few seconds - tens of seconds
7. Circuit board dimensions: 32mm*24mm
8. Sensing range: <120 degree cone angle, in 7m
9. Working temperature: -15-+70 degrees
10. Induction lens size: diameter: 23mm

Packing List

HC-SR501 Module Human Infrared Sensor Module SUNLEPHANT Pyroelectric Infrared Sensor
Original set and packaging
