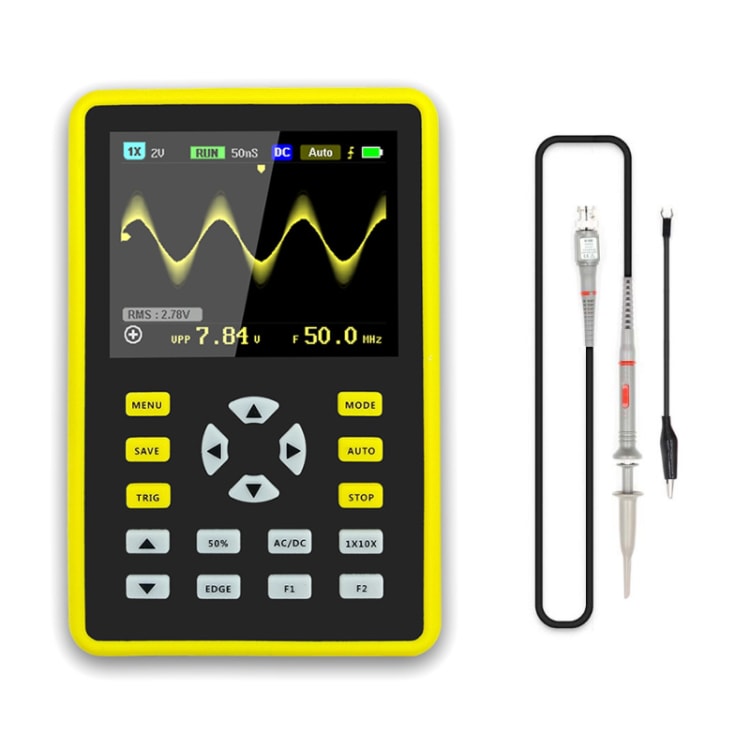

FNIRSI 2.4 Inch IPS Screen 100MHz Digital Oscilloscope (5012H)

Be the first to review this product

SKU: 06-0224573

Parameter:
1: Intelligent anti-burnout, 1X can withstand 600V withstand voltage
2: Afterglow display technology
3: 2.4 inch color display
4: 100MHz analog bandwidth@500MS/s sampling rate (1X = 5MHz, 10X = 100MHz)
5: One-key storage waveform
6: Built-in 64M storage space, store 2000 waveform pictures
7: Powerful waveform file manager, supports thumbnail browsing, viewing, detailed viewing, flipping, deleting and other functions

£61.31

£73.57

Availability: Out of stock

Qty:

i h

Ship to

Shipping Method

Name

Estimated Delivery

Price

No shipping options

Overview
Reviews

Features

Parameter:
1: Intelligent anti-burnout, 1X can withstand 600V withstand voltage
2: Afterglow display technology
3: 2.4 inch color display
4: 100MHz analog bandwidth@500MS/s sampling rate (1X = 5MHz, 10X = 100MHz)
5: One-key storage waveform
6: Built-in 64M storage space, store 2000 waveform pictures
7: Powerful waveform file manager, supports thumbnail browsing, viewing, detailed viewing, flipping, deleting and other functions
8: The measuring voltage range is high, 1X can measure 0~80V, 10X can measure 0~800V
9: 12 parameters measurement (MAX) VPP, VP, Vmax, Vmin, Vavg, Vrms, Frequent, Duty+, Duty-, Time+, Time-, Time
10: Freeze waveform display at any time (pause function)
11: Ultra-small size, easy to carry
12: Memory compression technology, the waveform refresh screen does not flicker
13: Analog bandwidth: 100MHz
14: Real-time sampling rate (MAX): 500MS/s
15: Vertical sensitivity: 50 mV/div ~ 100 V/div
16: Horizontal time base range: 50S/div6nS/div
17: Test voltage (MAX): 80V (1X probe), 800V (10X probe)
18: ADC precision: 8bits
19: Coupling method: AC/DC
20: Trigger mode: single, normal, automatic
21: Trigger edge: rising edge/falling edge
22: External trigger voltage 0-80V
23: Display screen: 2.4 inches - 320x240
24: Power supply: 3000mAh lithium battery
25: Storage depth: 128KB
26: Input resistance: 1M
27: Dimensions: 114x74x33 mm
28. Weight: 250 grams
Describe:
1. FNIRSI-5012H is a multi-functional, practical, and cost-effective handheld oscilloscope, suitable for maintenance industry and R&D industry, with a real-time sampling rate of FNIRSI up to 500MS/s and an analog bandwidth of 100MHz
2. With a complete trigger function (single, normal, automatic), whether it is a periodic analog signal or a periodic digital signal, it can be used freely
3. Built-in high voltage protection module, can withstand up to 400V continuous voltage and 600V peak voltage
, dont worry about burning out the oscilloscope if the high voltage doesnt reach the 10X position
4. Large time base scan mode for monitoring slow level changes
5. Equipped with efficient one-button AUTO, the measurement waveform can be displayed without complicated adjustments
6. Display high-definition LCD screen, 2.4 inches 320x240 resolution
7. Extremely convenient and fast waveform storage function, built-in 64M storage space, can store 2000 pieces 8. Waveform pictures, the storage process is simple and fast, save the current waveform anytime and anywhere, just one touch, no cumbersome prompts and choices, quiet It is very convenient to save the current waveform
Powerful waveform file manager, supports thumbnail browsing, viewing, detailed viewing, page turning, deletion, etc.
9. Built-in 3000mah high-quality lithium battery, fully charged can be used continuously for 8 hours
10. The fuselage is equipped with a high-quality silicone protective cover, which is non-toxic, lead-free and environmentally friendly, non-slip and shock-proof, fully protects the fuselage, soft in texture, and feels very comfortable
Package includes:
Oscilloscope x 1
High voltage probe x 1
USB cable x 1
Manual x 1

Specifications

General
Certificate	CE

Packing List

FNIRSI 2.4 Inch IPS Screen 100MHz Digital Oscilloscope (5012H)
Original set and packaging
