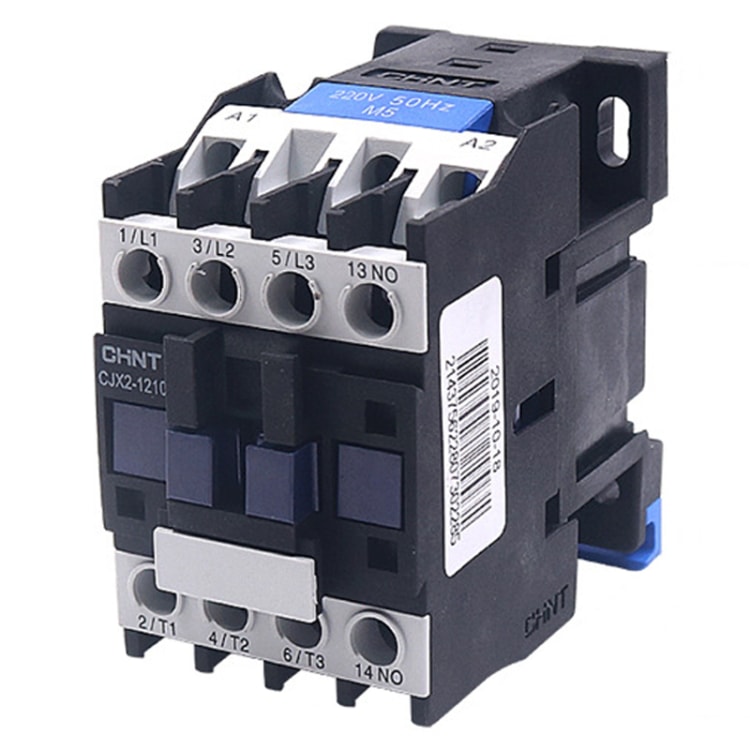

CHNT CJX2-1201 12A 220V Silver Alloy Contacts Multi-Purpose Single-Phase AC Contactor

SKU: 06-0266659

Coil voltage: AC 220V
Working current: 9A-95A
Insulation voltage: 690V
Wiring capacity: 4-10 square millimeters
Installation: rail/screw mounting
Description: selection on demand, CJX2-xx10: normally open, energized suction; CJX2-xx01: normally closed, energized disconnection; CJX2-xx11: an open and a closed
8 contacts, silver alloy material, strong conductivity, more stable contact when connecting with larger size
32 pieces of iron core, suction more smooth and tight, real material, two silicon steel iron core

£11.15

£13.61

Availability: In stock

Qty:

i h

Ship to

Shipping Method

Name

Estimated Delivery

Price

No shipping options

Features

1. Coil voltage: AC 220V
2. Working current: 9A-95A
3. Insulation voltage: 690V
4. Wiring capacity: 4-10 square millimeters
5. Installation: rail/screw mounting
Features:
1. Description: selection on demand, CJX2-xx10: normally open, energized suction; CJX2-xx01: normally closed, energized disconnection; CJX2-xx11: an open and a closed
2. 8 contacts, silver alloy material, strong conductivity, more stable contact when connecting with larger size
3. 32 pieces of iron core, suction more smooth and tight, real material, two silicon steel iron core
4. Copper core coil, when the coil is energized, the static iron core generates electromagnetic suction, which sucks the iron core together
5. A variety of uses, control equipment, load is too large with the use of temperature control, time control, water level control, etc.
6. Rated current is not equal to the agreed heating current, please take the rated current as the standard purchase, long-term work under the agreed heating current will cause damage to the equipment or reduce the life of the AC contactor, damage

Packing List

CHNT CJX2-1201 12A 220V Silver Alloy Contacts Multi-Purpose Single-Phase AC Contactor
Original set and packaging
