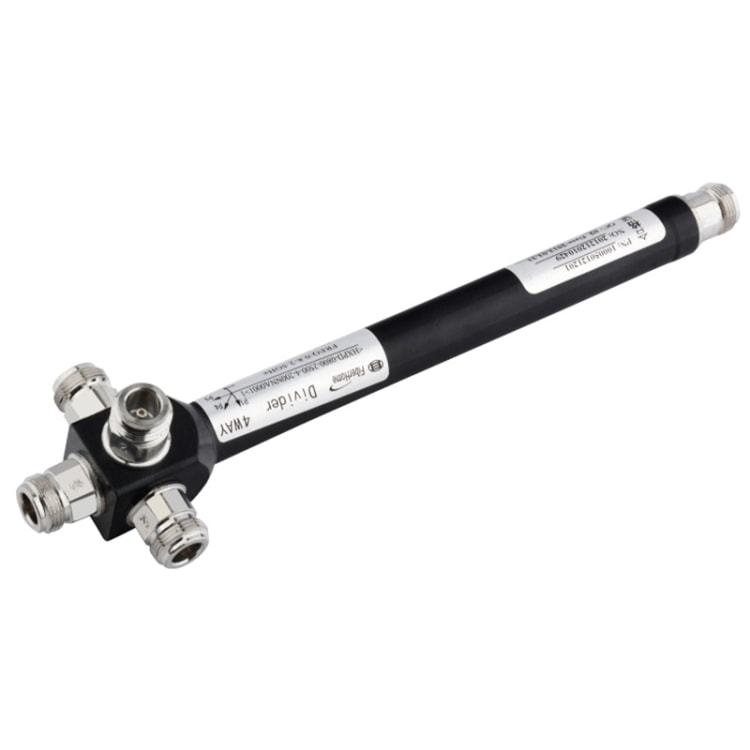

800-2500MHz 4 Way Cavity RF Power Splitter/Power Divider

SKU: 06-0226859

Using micro strip structures, in-band flatness is good, high isolation, insertion loss is small, Standing wave good performance, easy installation, for cellular mobile communications and spread spectrum communications in indoor distribution system.
* Electrical Specifications:
Type: 4-way Cavity Power Divider
Frequency: 800 ~ 2500MHz
Insertion loss(distribution ratio)-db:<=6.5DB
Isolation (dB): <=27
Nominal Impedance: 50 Ohm
VSWR: 1:1.2

£6.70

£8.10

Availability: In stock

Qty:

i h

Ship to

Shipping Method

Name

Estimated Delivery

Price

No shipping options

Features

1. Using micro strip structures, in-band flatness is good, high isolation, insertion loss is small, Standing wave good performance, easy installation, for cellular mobile communications and spread spectrum communications in indoor distribution system.
* Electrical Specifications:
1. Type: 4-way Cavity Power Divider
2. Frequency: 800 ~ 2500MHz
3. Insertion loss(distribution ratio)-db:<=6.5DB
4. Isolation (dB): <=27
5. Nominal Impedance: 50 Ohm
6. VSWR: 1:1.2
7. Max. Power(MAX)(W) :50
8. Connector: N female
* Mechanical Characteristics:
1. Environment temperature:-25~+55 Degree C
2. Relative humidity: 5~95%
3. Size: 235mm X 60mm x 43mm
4. Weight: 212g
