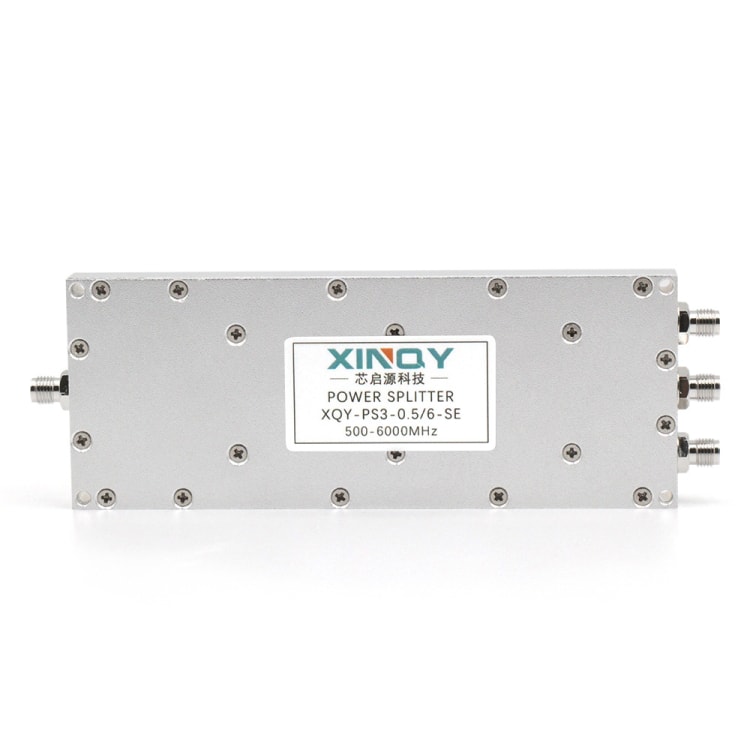

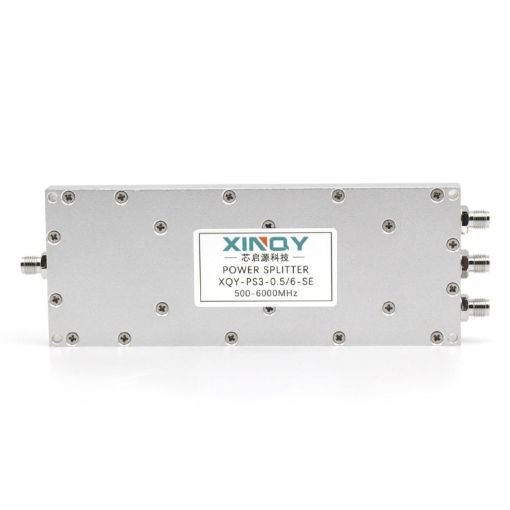

500~6000MHz SMA 1 To 3 Microstrip Power Splitter

SKU: 06-0226866

£63.45

£72.96

Availability: In stock

Qty:

i h

Ship to

Shipping Method

Name

Estimated Delivery

Price

No shipping options

Features

1. Impedance: 50 Ohms
2. Phase balance: 8 degrees
3. Surface treatment: sandblasting guide
4. Port connector: SMA-Female
5. Low insertion loss, low standing wave, high isolation
6. Working temperature: -35~+75 degrees celsius
7. Frequency range: 500~6000MHz
8. Amplitude balance: 0.8dB
9. Isolation: Typ.25dB / Min.20dB
10. Input standing wave: Typ. 1.24/Max.1.4
11. Output standing wave: Typ. 1.18 / Max.1.3
12. Withstand power: 20W for splitter; 1W for combiner
13. Insertion loss: less than or equal to 2.6dB (excluding theoretical loss of 4.8dB)
14. Dimensions: 130x50x12mm
15. Weight: 185g
